Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch

Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

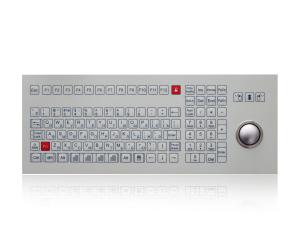

Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch

Brand Name : IKB-MKB

Model Number : K-TEK-D410-OTB-KP-FN-SW

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : Membrane

Keys : 106 keys

G.W. : 1.60KG

Resolution : 800 DPI

Layout : Any customized language

Mounting : Front panel mounting

Name : Industrial Membrane Keyboard

Contact Now

Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch

Membrane Keyboard Features:

-IP65 rate industrial membrane keyboard

-106 keys with full functionality with numeric keys and FN keys

-Any customized layout is available

-Integrated with IP68 optical trackball for fast cursor moving

-FN+Lock buttons for easier cleaning the keyboard

-With Omran switch technology for fast data input and excellent tactile

-Top panel mount with threaded bolts

Industrial Membrane Keyboard Dimensions: 410.0 mm x 160.0 mm (front panel)

Food And Beverage Industrial Membrane Keyboard With Trackball Omron Switch

MECHANICAL DATA
Number of Keys 106 keys (including 3 mouse buttons)
Key switch Technology OMRON switch technology with short stroke 0.45mm for stable and accurate data input
Actuation Force 2.0N±0.2N (press point)
Key Travel 0.45±0.05mm
Key switch Lifetime 1 mil. operations
Mounting Type Top panel mounting.
Colors 3 (white, black, grey)
G.W. 1.60KGs
Key Dimensions (print area) 14.0mm x 14.0mm
Trackball IP68 washable 38mm stainless steel optical ball, or silver hardened resin optical ball
Trackball resolutions 800DPI
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 100mA
EMC Standard EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Interface PS2, USB available
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -20℃ to +65℃
Storage temperature -30℃ to +75℃
Operating RH 100%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS, CE, FCC
Protection Level IP65 dynamic
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
APPLICATIONS Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc.
