Arabic desktop ruggedized keyboard with transparent trackball , industrial computer keyboard

Product Categories
Key Technology ( China ) Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Arabic desktop ruggedized keyboard with transparent trackball , industrial computer keyboard

  • 1
  • 2

Model Number : K-TEK-M380-CTB-FN-DT-BL

Place of Origin : Shenzhen, China

Packaging Details : Each keyboard to one box, several boxes to one carton.

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Brand Name : IKB-MKB

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

MOQ : 1pc

Keys : 85 keys

Interface : USB port,PS2 port

Working Voltage : +5V DC +/-5%

Trackball : IP65 static chameleon trackball module with 400 DPI

OS : All windows, Linux, Unix, Mac OSX

Contact Now

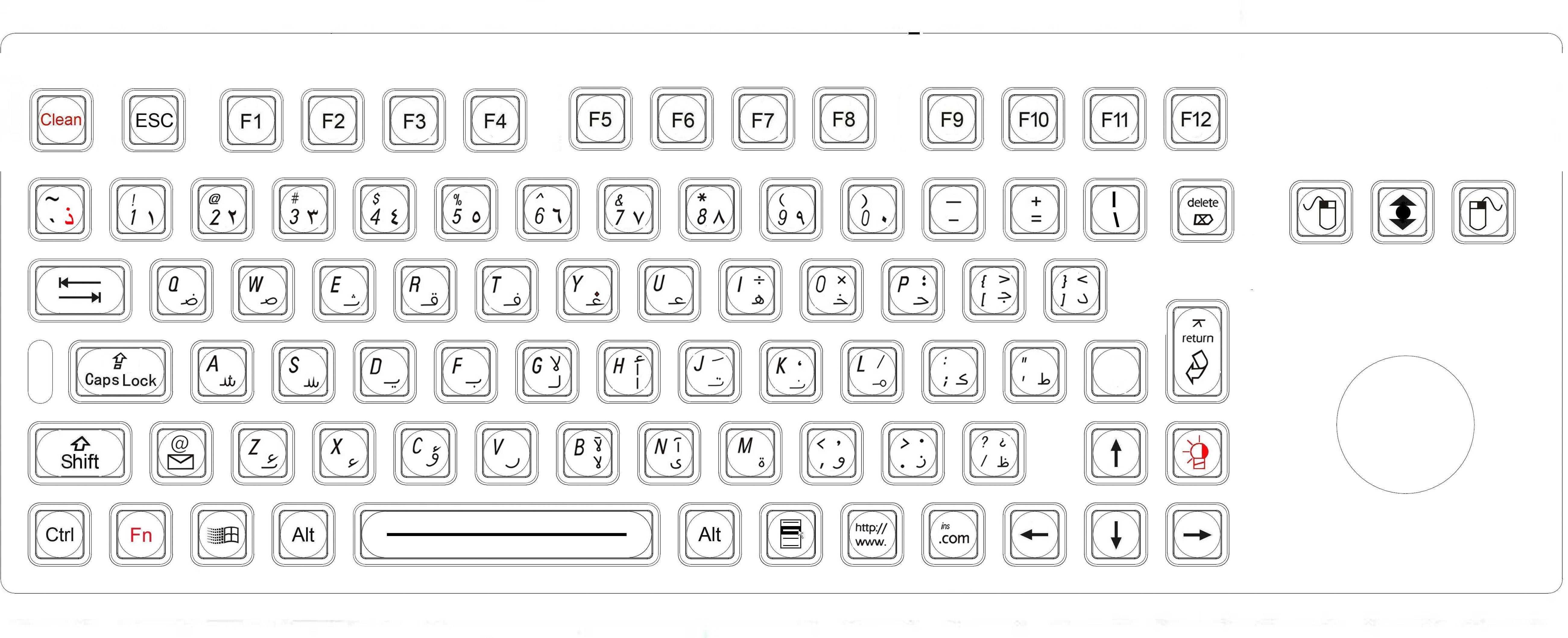

Arabic desktop ruggedized keyboard with transparent trackball

Special Features:

1. Operational life of more than 10 million cycles per key

2. With IP65 chameleon backlight trackball and Fn (F1,F2,F3...F12) keys.

3. Can work at very hostile environments with vandal proof, weather proof.

4. Key tops is laser-etched or high quality ink in legends and characters for easy readability, long life to prevent lettering rub-off.

5. The keyboard is with red backlight options special in the dimmy light.

6. With vadalproof rate : IK10 rate.


APPLICATION:

This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.

MECHANICAL DATA:

  • Key top style: Protuberant rectangular keys.
  • Actuator/keys materials: polymer
  • SS housing: full SUS304 stainless steel housing.
  • Key Size: 11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
  • Tracker ball: 38mm (1.5') diameter, IP65 chameleon backlight trackball
  • Switch life: more than 10 million of operations.
  • Lettering: laser-etched or high quality ink print.
  • G.W.: 2.50KGs
  • Dimensions: 393.0mm x 154.4mm x 36.0mm (L x W x H) ​

​ELECTRICAL DATA:

Supply Voltage +5V DC +/-5%
Current Rating 40mA for keyboard and trackball without backlight. 240mA for keyboard and trackball with backlight on
EMC Standard

It is compliance with the council IEC 61000-4-2:2008；

IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI EN 55022: 2010
EMS EN 55024:2010
Lifespan 5 years
Switch Contact Material Carbon-on-Gold key switch technology PCB
Interface PS2, USB available
OS All windows, Linux, Unix, Mac OSX



ENVIRONMENTAL ADAPTABILITY:


Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 100%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
