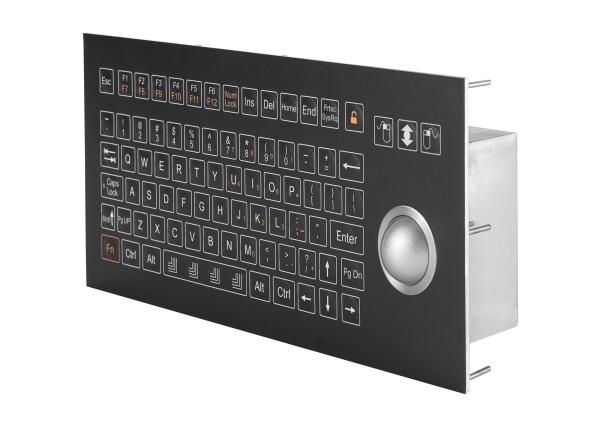

IP67 Omron Switch Industrial Membrane Keyboard 38.0mm Trackball

Name: IP67 Omron Switch Industrial Membrane Keyboard 380mm Trackball
Brand: IKB-MKB
Price: 1 USD

China IP67 Omron Switch Industrial Membrane Keyboard 38.0mm Trackball wholesale

Brand Name : IKB-MKB

Model Number : K-TEK-D333-OTB-FN-SW

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : Membrane

Keys : 84

Trackball : 38.0mm optical trackball

Dimensions : 333.0mm x 150.0mm (Front Panel)

Key switch Technology : OMRON Switch

Mounting : Front panel mounting

Protection Level : IP67(front panel)

Layout : Any customized language

Contact Now

Promotion IP67 Industrial Membrane Keyboard With Omron Switch Optical Trackball

MODEL NO.: K-TEK-D333-OTB-FN-SW

Description:

-84 keys compact format IP67 dynamic rated industrial membrane keyboard

-With function keys on the upper line

-Integrated IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position.

-2.0mm thickness industrial PCB OMRON switch technology

-With short stroke 0.45mm(good tactile feeling) for reliable data input

-With LOCK key for easy cleaning via lock/disable the entire keyboard without taking away the keyboard from PC

-Surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester.

-It withstand to most chemicals and liquids under the harshest environments.

-The durable fonts printed on the film underneath nnever fade,

-Ruggedized and backed with 3.0mm alumium plate with sand blasting & oxygenation treatment,

-With top panel mounted solution.

MECHANICAL DATA:

Number of Keys:	84
Key switch Technology:	OMRON switch technology with short stroke 0.45 mm for stable and accurate data input.
Actuation Force:	1.4 N+/-0.1 N for key 11.0 mm x 11.0 mm (press point)
Key Travel:	0.45 mm
Key switch Lifetime:	1 mil. operations
Protection Level:	IP67
Mounting Type:	Top panel mounting
Operating Temperature:	-20 °C to +60 °C
Colors:	2 (white, black)
G.W.:	1.50 KG
Key Dimensions (print area):	11.0 mm x 11.0 mm

TRACKBALL:

38mm stainless steel ball or hardened resin ball.

Resolution: 800DPI

Lifetime: more than 10 million cycle

Power supply voltage: 5 V DC ±0.25V

Current rating (active mode): 800mA

Dimensions: 333.0mm x 150.0mm (top panel)

IP67 Omron Switch Industrial Membrane Keyboard 38.0mm Trackball

ELECTRICAL DATA:

Supply Voltage: +5V DC +/- 5%

Current Rating: appr. 100mA

EMC Standard:EN 55032:2015; EN 55035:2017

Lifespan> 5 years

Interface: PS2, USB available.

OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

RELIABILITY

RoHS, CE and FCC

Protection Level: IP67

Key Lifespan >1 million actuations

Trackball lifespan > 10 million of times

MTBF >20000H

MTTR <30min

FAQ

www.rugged-key.com
www.key-tek.cn
www.ruggedized-keyboard.com

Q: Are you trading company or manufacturer ?

A: We are a professional manufacturer for industry/military/medical/vehicle keyboards.

Q: How long is your delivery time?

A: Generally it is 1-2 Weeks after payment is received. If larger quantity, delivery time would be 3-5 weeks.

Q: Do you provide samples ?

A: Yes, we could offer the sample of one quantity first before large quantity orders.

Q: What is your terms of payment ?

A: 100% payment via Paypal T/T, Western Union or Alibaba Trade Assurance.
