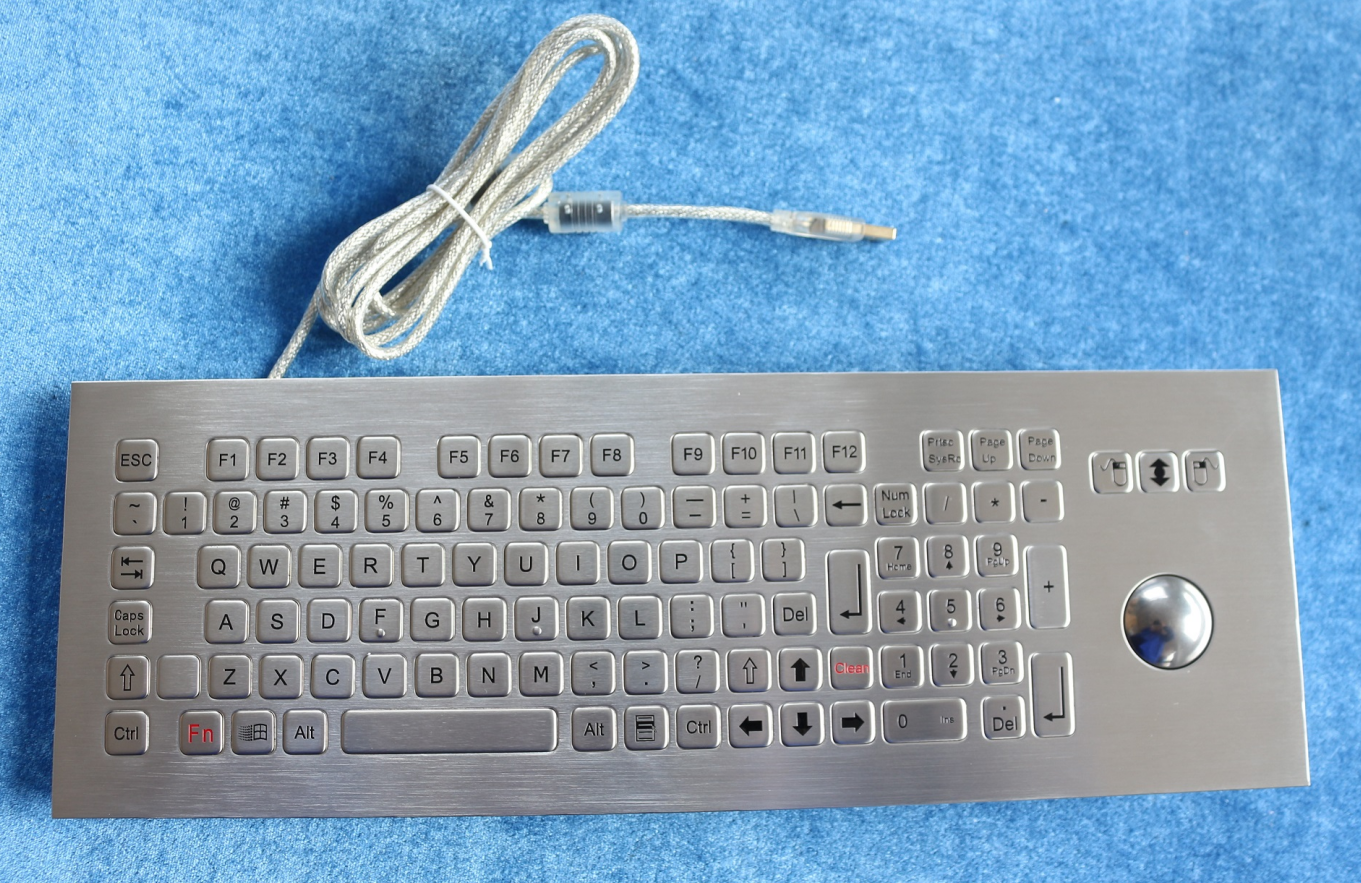

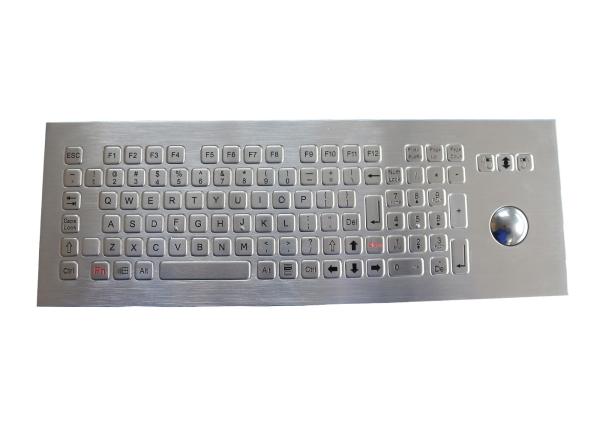

Waterproof Metal Industrial Keyboard With Mechanical Trackball 400DPI 104 Keys
DESCRIPTION:
104 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with IP65 static 38.0mm stainless steel mechanical trackball module with 400DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with good tactile feeling for stable and accurate data input. F1, F2, F3…F10, F11, F12 are on the top line for easy operation, with numeric keypad , 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, one complete sealing silicone rubber under top stainless steel plate for easy mounting & sealing tightly with cabinet, top stainless steel plate with side threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 420.0mm x 145.0mm (top panel)
MECHANICAL DATA
Actuator/keys: 104 keys, super quality SUS304 brushed stainless steel.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel

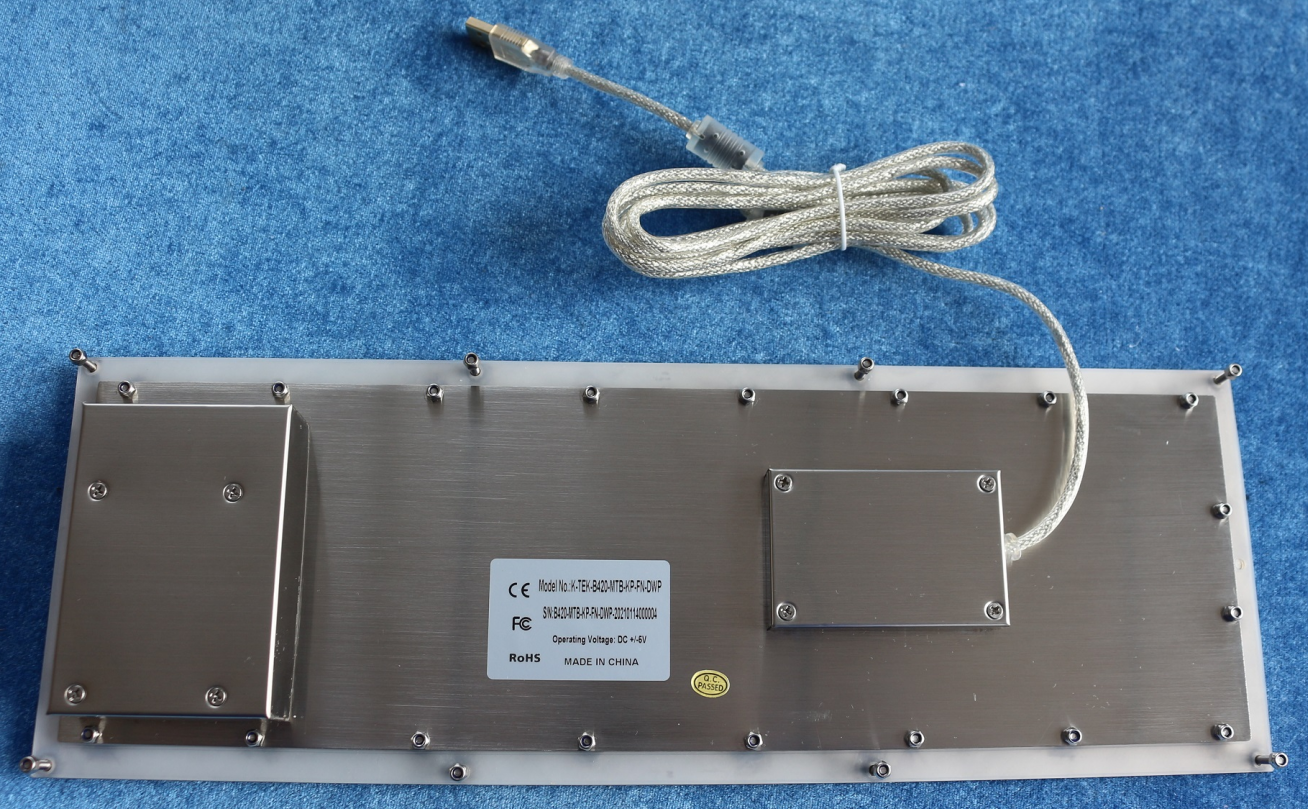

Back Plate: 2.0mm thickness super quality brushed stainless steel
Tracker ball: 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball
G.W.: 2.50KGs
Dimensions:420.0mm x 145.0mm (L x W )
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 100mA
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan > 5 years
Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
| Operating temperature | -20oC to +60oC |
| Storage temperature | -30oC to +70oC |
| Operating RH | 30-90% |
| Atmospheric pressure | 60-106Kpa. |
| Saline mist | 96 hours, IEC 60512-6 |
| Damp heat test at + 40oC | 21 days, IEC 60512-6 |
| Dry heat test at + 85oC | 10 days, IEC 60512-6 |
| Protection Level | keyboard IP67 + trackball IP65 |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
