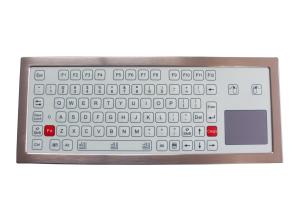

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

  • 1
  • 2

Brand Name : IKB-MKB

Model Number : K-TEK-D343TP-FN-DT

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : membrane with stainless steel frame

Touchpad : Yes

Application : Industrial / Food and Beverage

Color : white / black

USB : Yes (PS/2 optional)

Mounting : Movable Desk Top

Contact Now

DESCRIPTION:

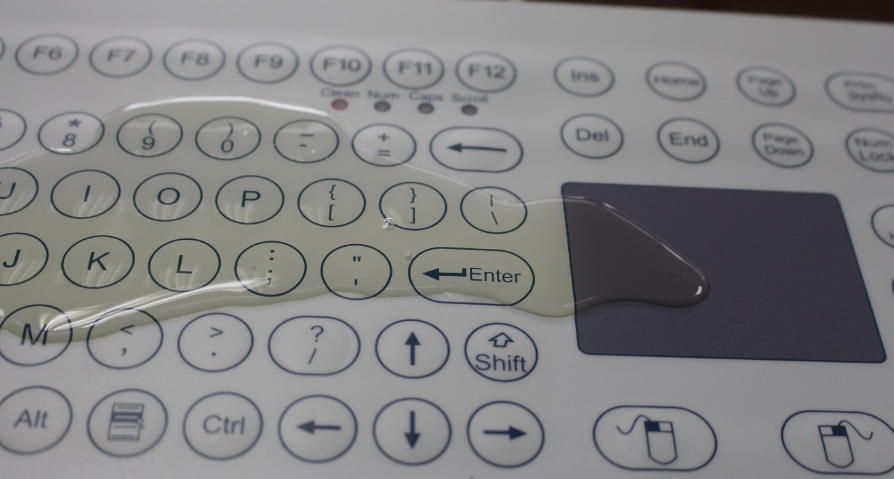

81 keys compact format IP68 dynamic rated membrane industrial keyboard with function keys on the upper line and IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN and CLEAN key for easy cleaning via lock/disable the entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, back side sealed with ruggedized and vandal proof stainless steel plate for stand alone DESK TOP VERSION.

MECHANICAL DATA:
Number of Keys 81
Key switch Technology metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys
Actuation Force 2.8N for key 11.0mm x 11.0mm (press point)
Key Travel 0.45mm
Key switch Lifetime 3 mil. operations
Protection Level IP68
Mounting Type Top panel mounting or Desk Top.
Operating Temperature -20 °C to +50 °C;
Colors 2 (White or Black)
G.W. 2.0KGs
Key Dimensions 11.0mm x 11.0mm
Dimensions 368.0mm x 150.0mm x 20.2mm (L x W x H)
ELECTRICAL DATA:
Supply Voltage: +5V DC +/- 5%
Current Rating: appr. 50mA
EMC Standard: EN 55032:2015; EN 55035:2017
Lifespan > 3 years
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android
RELIABILITY
RoHS , CE, FCC
Protection Level: IP68
Key Lifespan >1 million actuations
Touchpad lifespan > 5 million of times
MTBF >20000H
MTTR <30min

More Views:

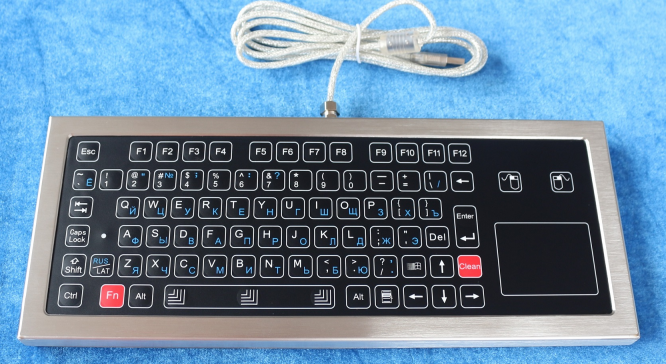

Front View (Black Membrane)

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

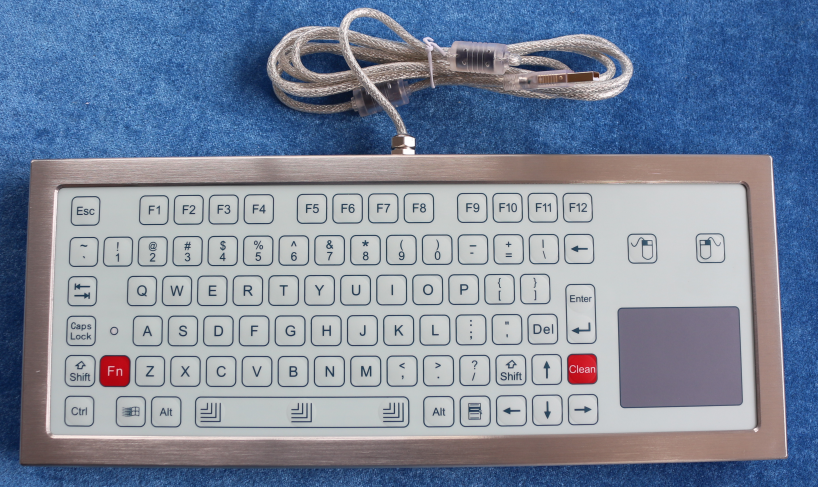

Front View (White Membrane)

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

Back View

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad

Steel Plate Membrane Ruggedized Keyboard 81 Keys IP68 With Touchpad
