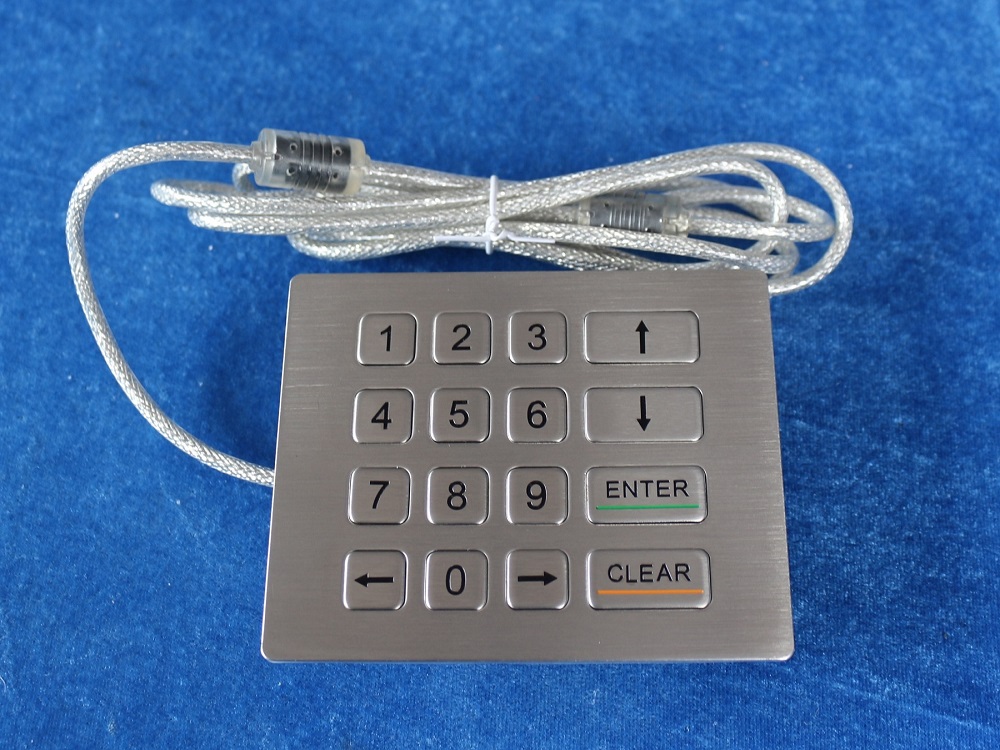

16 Keys Rugged Numeric Keypad IP67 Waterproof Stainless Steel Industrial Metal Keypad

  • 1
  • 2

Brand Name : IKB-MKB

Model Number : K-TEK-B120KP-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2-3 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Price : To be quoted

Panel : Top panel mounting

Key number : 16 keys

Key travel : 0.45mm short stroke

Material : stainless steel

Colour : Brushed stainless steel or black

Interface : USB, PS/2

Contact Now

DESCRIPTION: 16 keys compact format IP67 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS:120.0mm × 98.0mm (front panel)
APPLICATION:
This Keypad is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications,
internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations
and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones
etc..
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
COMMUNICATION PARAMETER
PS2/USB:
Standard PS2/USB keyboard interface.
16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code
RS232:
Standard RS232 serial interface.
Communication velocity: 9600bps.
Data format: N, 8, 1.
16 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Cancel, Clear, Enter, backup key 3, 4 x 4 scanning code.
MECHANICAL DATA
Actuator/keys: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for function keys
Key travel: 0.45mm
Actuation Force: 3.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x28.0mm (pressure point)
Switch life: more than 1 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate: 1.5mm thickness super quality stainless steel
G.W.: 0.80KGs
Dimensions: 120.0mm x 98.0mm (L x W )
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK09
Key Lifespan > 1 million actuations
MTBF > 20000H
MTTR < 30min

16 Keys Rugged Numeric Keypad IP67 Waterproof Stainless Steel Industrial Metal Keypad

16 Keys Rugged Numeric Keypad IP67 Waterproof Stainless Steel Industrial Metal Keypad

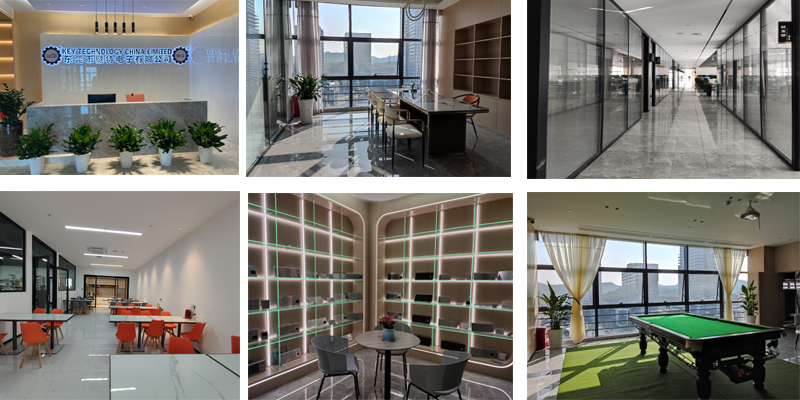

Our Factory:

16 Keys Rugged Numeric Keypad IP67 Waterproof Stainless Steel Industrial Metal Keypad

16 Keys Rugged Numeric Keypad IP67 Waterproof Stainless Steel Industrial Metal Keypad

16 Keys Rugged Numeric Keypad IP67 Waterproof Stainless Steel Industrial Metal Keypad
