Medical Hygienic Keyboard Industrial Custom Membrane Keyboard
Membrane Industrial Keyboard Special Features:

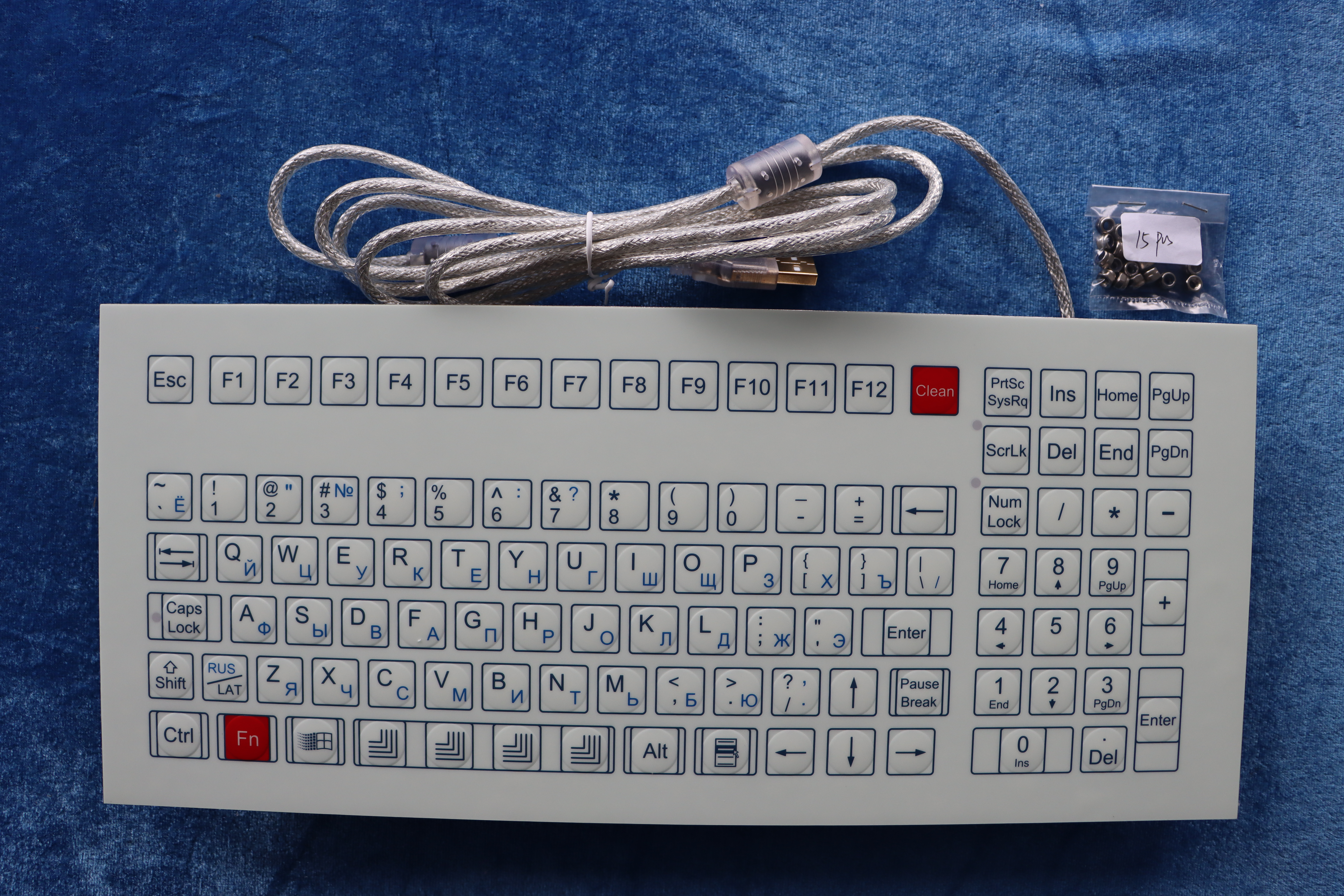

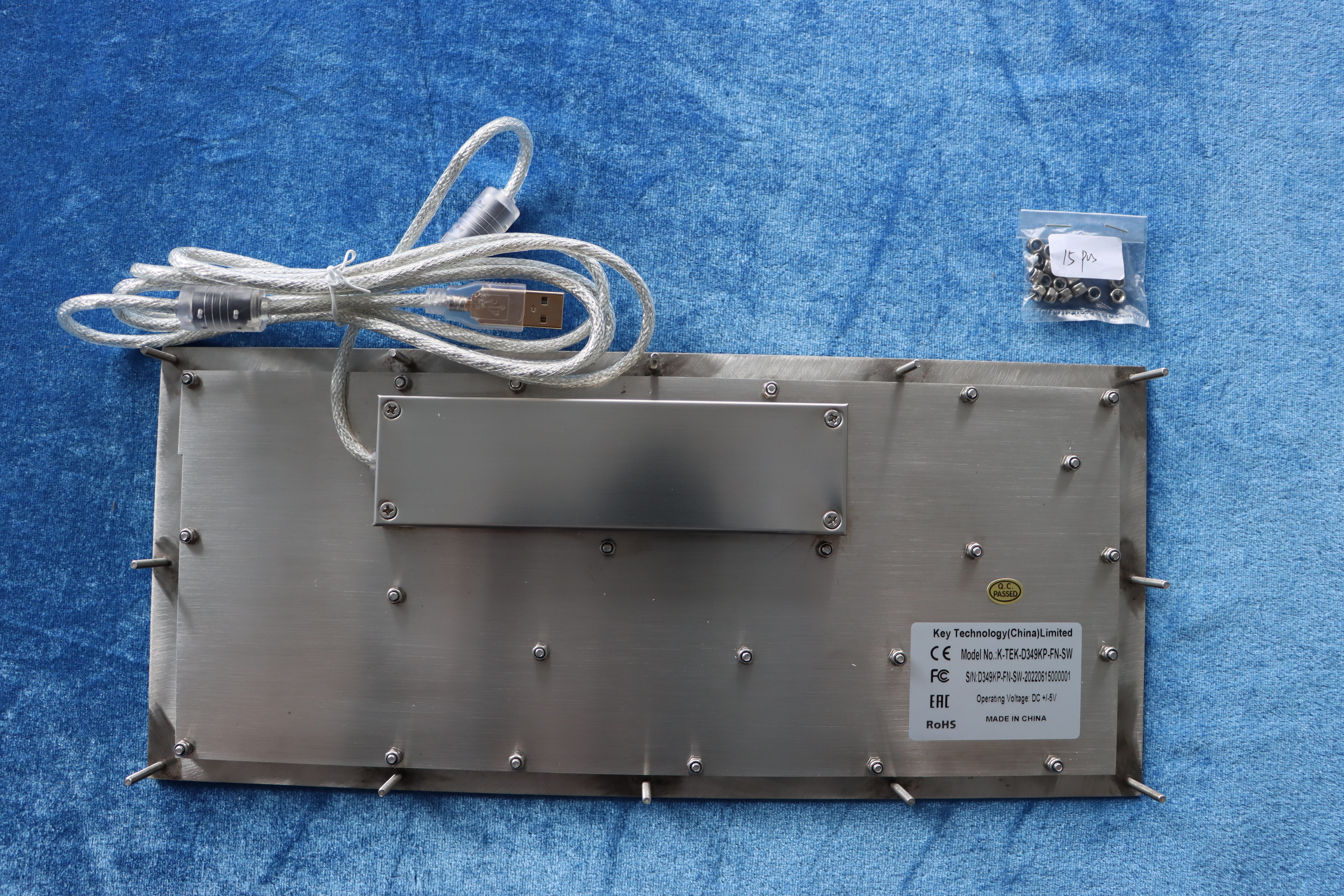

106 keys IP67 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line, 2.0mm thickness industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with “FN+Clean” key combination for easy cleaning via lock/disable the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized and backed with 1.5mm stainless steel plate with brushed treatment, with top panel mounted solution.
DIMENSIONS: 349.0mm x 152.0mm (top panel)
| MECHANICAL DATA : |
| Key | 106 keys |
| Key switch Technology: | OMRON switch technology with short stroke 0.45mm for stable and accurate data input |
| Key Size | 14.0mm x 14.0mm |
| Key travel | 0.45mm |
| Actuation Force | 1.4N+/-0.1N for key 14.0mm x 14.0mm (press point)
|
| G.W. | 1.30KGs |
| Dimensions: | 349.0mm x 152.0mm (Front Panel) |
| ELECTRICAL DATA |
| Supply Voltage | 349.0mm x 152.0mm (Front Panel) |
| Current Rating | 30 mA |
|
EMC Standard:
| EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface: | PS2, USB available. |
| OS: | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
MEDICAL KEYBOARD RELIABILITY :
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >1 million actuations
MTBF >20000H
MTTR <30min
More View:
FAQ
1: Do you provide samples ?
A: Yes, we could offer the sample of one quantity first before large quantity orders.
2. If I need customized products , what is the delivery date time and price ?
A:The price is according to the way you want customize your keyboard. Delivery time usually is 2-3 weeks.
3. Can you customize the surface and program of your product according to my requirements?
A:Yes. You need to provide the surface draft !
3.Is your keyboard waterproof and vandal proof?
A:We do have waterproof vandal proof metal keyboards. Tell us is for indoor or outdoor, we can recommend you the right product.
4. What's the warranty of your products?
A:One year
