Durable Embedded silicone rubber rugged keyboard 87 Keys Built In Military Grade PCB

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-M302-FN-BL-ML

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : To be quoted

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2-3 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Material : Silicone rubber

Keys : 69 keys

Interface : USB

Key travel : 1.50mm±0.10mm

G.W. : 0.50KGs

Name : rugged silicone keyboard

Keyword : Rugged keyboard, keyboard with touchpad

Key switch : carbon-on-gold key switch technology

Protection level : IP65

Contact Now

DESCRIPTION: 87 keys IP65 dynamic sealed and durable embedded silicone rubber rugged keyboard, with built-in military grade PCB, 12 function keys on top line for easy operation, with carbon-on-gold key switch technology with key stroke (1.50±0.10mm) with extremely good tactile feeling for fast and accurate data input without any noise, key size of 15.0mm*14.5mm for easy operation without mis-typing, also ideal for users who wear gloves, with durable coating & anti-microbial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + Clean combination key for easy cleaning via lock/disable the whole keyboard without needing to take away the keyboard from PC, rear panel mounted solution and adjustable white backlight included, with a reinforced and rugged metal back plate for better shielding function and positioning of the rugged cable outlet. Built to meet MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.), which can also meet the critical military standards in these 10 aspects: reliability, safety, maintainability, testability, supportability, environmental adaptability, stability, compatibility, consistency, and continuity.

DIMENSION: 302.0mm x 121.0mm (Front panel)

MECHANICAL DATA
Keys 87 keys
Switch Contact Material Carbon-on-gold key switch technology
Key Top Style Protuberant rectangular keys with tactile feeling
Key Travel 1.50mm±0.10mm
Key Size 15.0mm*14.5mm for normal keys, 12.0mm*12.0mm for function keys on upper line
Actuation Force 1.5N±0.2N (pressure point )
G.W. 0.80KGs
ELECTRICAL DATA
Supply Voltage DC +5V±5%
Current Rating 30mA when backlight is off, 300mA with backlight on
EMC Standsrd EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Interface USB
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature -40℃ to +75℃
Storage temperature -45℃ to +85℃
Operating RH 3%~95%
Atmospheric pressure 60-106Kpa
Saline mist 96 hours, IEC 60512-6
Damp heat test at +40℃ 21 days, IEC 60512-6
Dry heat test at +85℃ 10 days, IEC 60512-6
RELIABILITY
RoHS compliant, CE and FCC certified, MIL-STD-810F (high and low wide temperature, low pressure, humidity, vibration, shock, salt spray, temperature shock, rain, fungus etc.),
Protection Level IP65 dynamic (front panel)
Key Lifespan >5 million actuations
MTBF >20000H
MTTR <30min
APPLICATION Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.

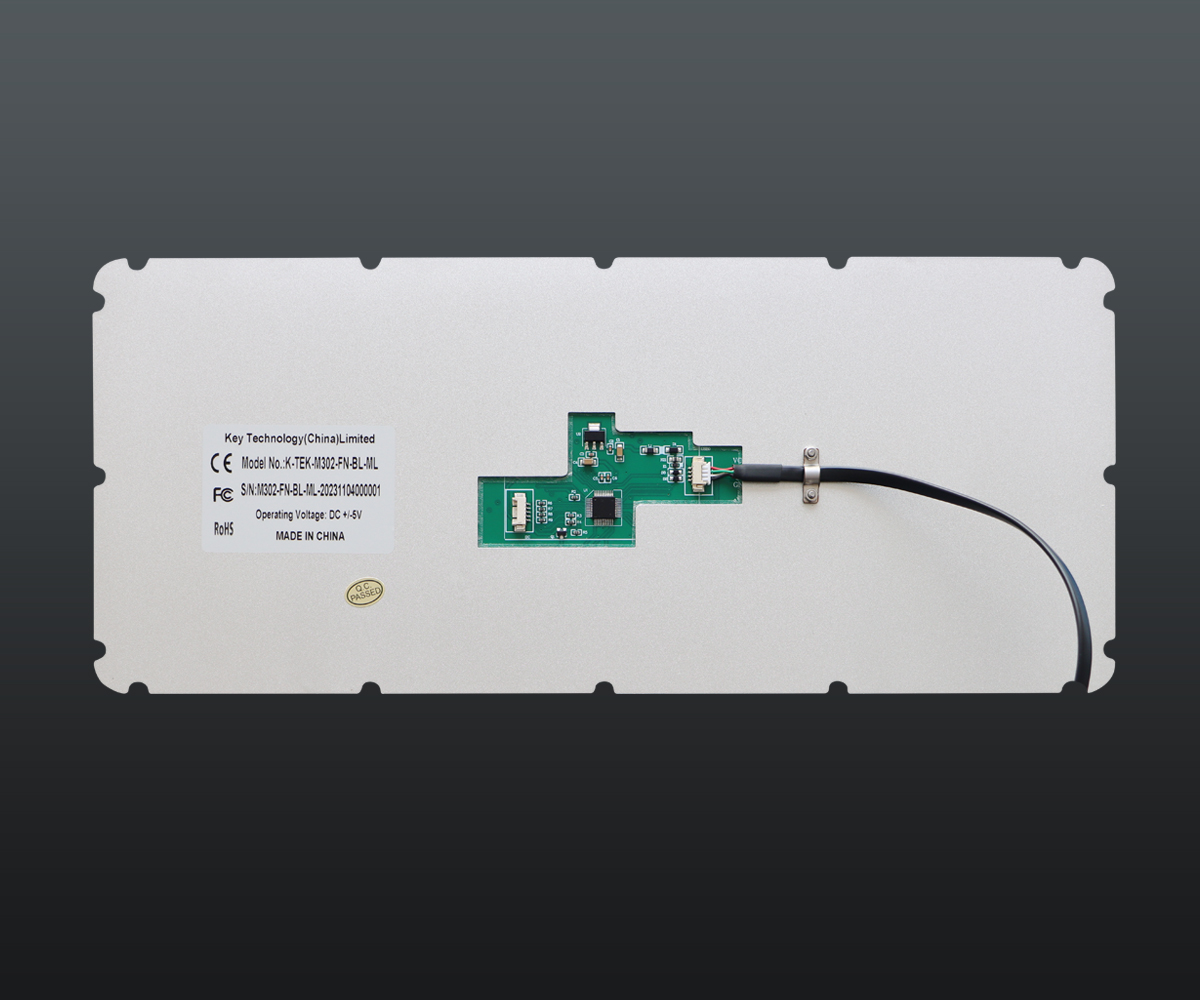

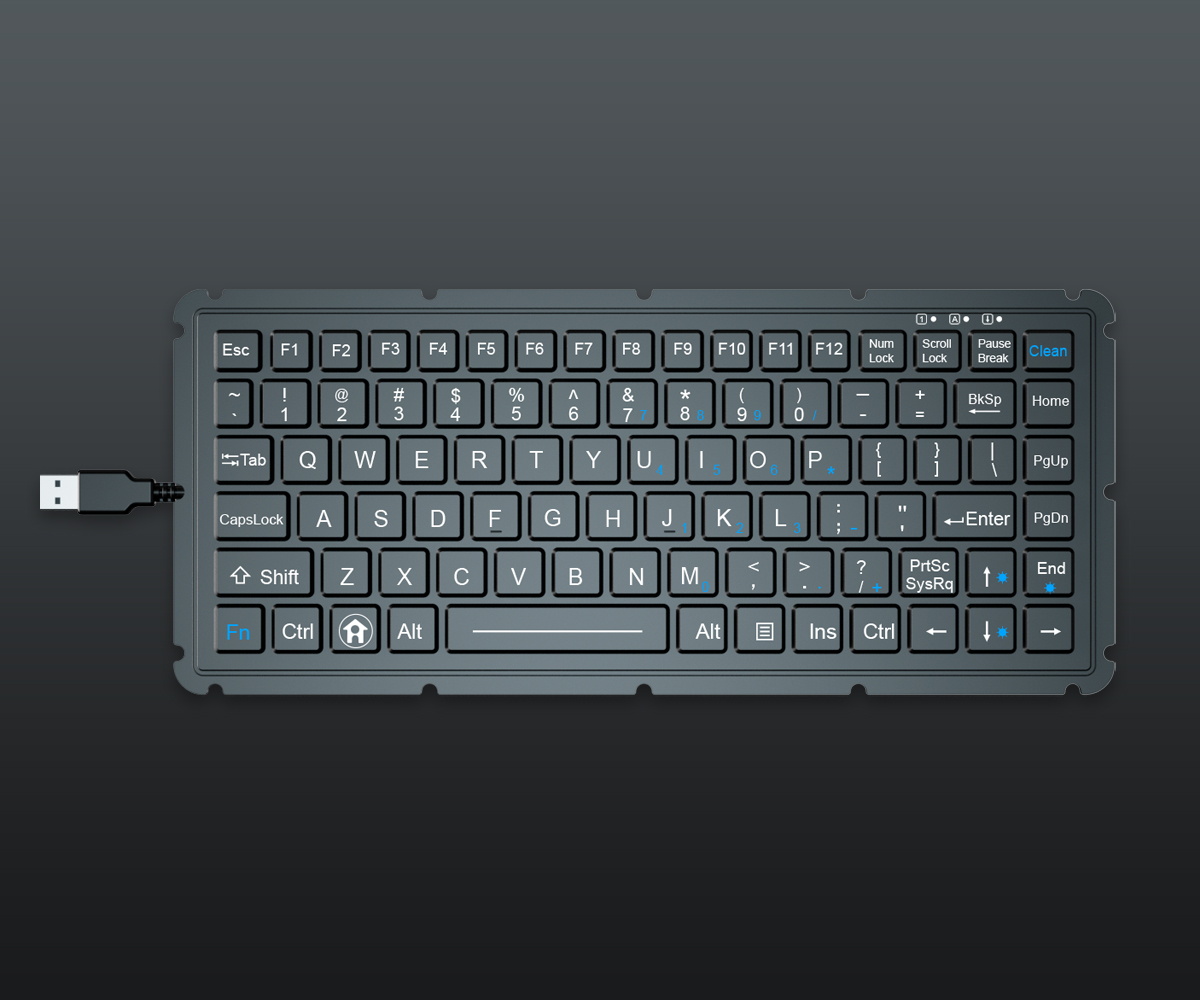

ACTUAL PHOTOS

Durable Embedded silicone rubber rugged keyboard 87 Keys Built In Military Grade PCB

Durable Embedded silicone rubber rugged keyboard 87 Keys Built In Military Grade PCB

KEY TECHNOLOGY (CHINA) LIMITED

Durable Embedded silicone rubber rugged keyboard 87 Keys Built In Military Grade PCB
Durable Embedded silicone rubber rugged keyboard 87 Keys Built In Military Grade PCB
